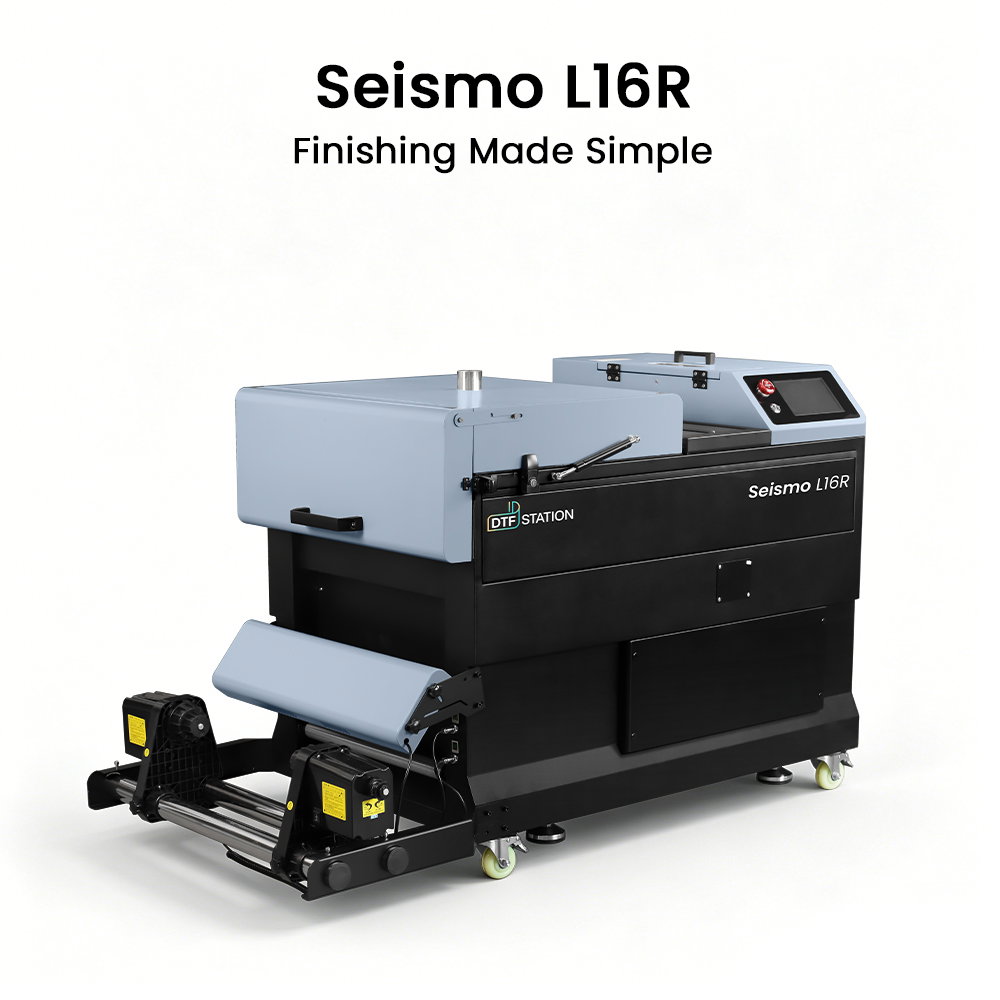

Seismo L16R Powder Shake with Auto-Recirculating – 45cm Width

The Seismo L16R is an advanced version of the DTF shake powder machine, Seismo L16. It comes equipped with an auto-recirculating system that collects excess powder for refilling automatically.

SKU D.02.02.0020 Categories , ,

DTF Shake Powder Machine & Dryer with Auto-recirculating System – 45cm Film Width

The Seismo L16R is a next-generation DTF shake powder machine and dryer engineered for serious production. With intelligent powder control, easier film handling, and an auto-recirculating system, it helps shops run longer, waste less, and deliver consistent, high-quality prints shift after shift.

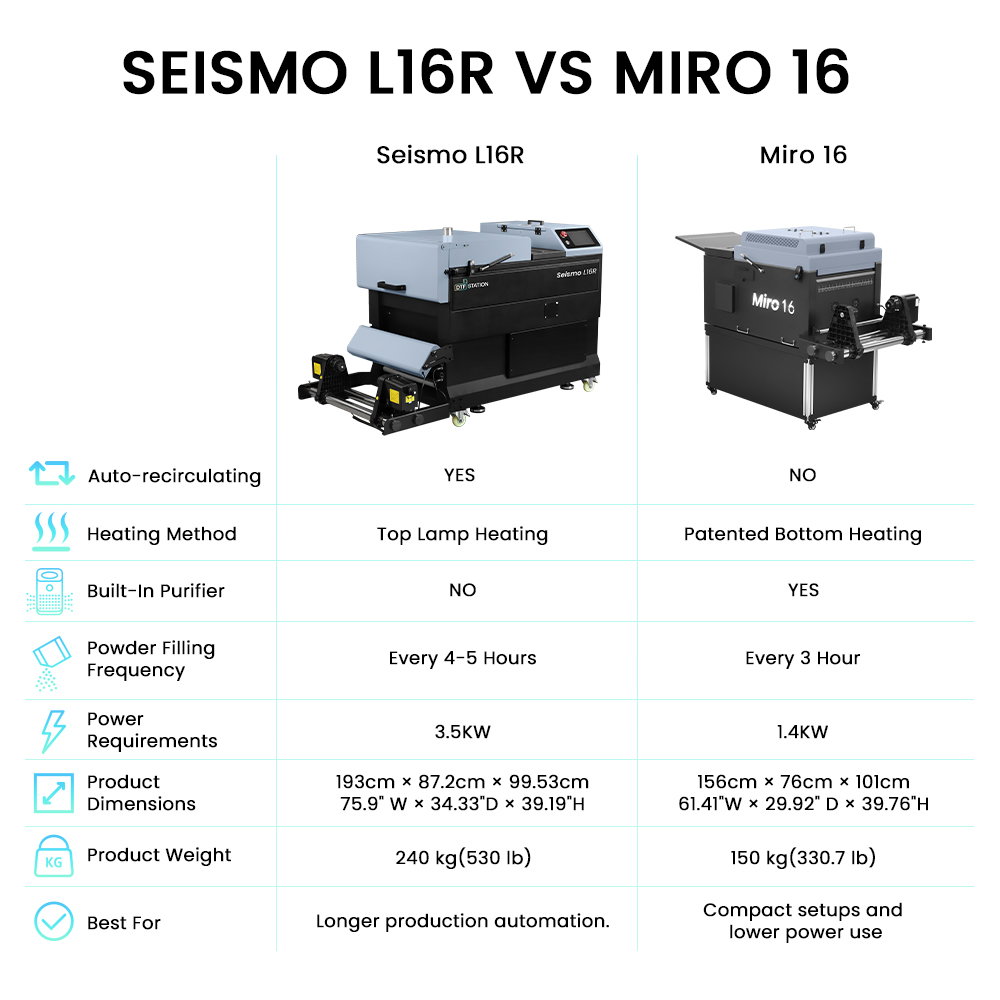

Compared to the Seismo L16, the L16R extends powder refill intervals from roughly 2–3 hours to about 4–5 hours, making it a smart choice for print factories and DTF businesses running more than 5 hours a day.

Features

  • Built for business uptime – Designed for continuous production with features that reduce material waste, labor, and downtime.
  • Auto-recirculating powder system – Automatically collects and recycles excess powder back into the hopper, cutting manual refills and improving overall efficiency.
  • Longer run time between refills – Run up to 4–5 hours before refilling powder, ideal for busy shops and longer production runs.
  • Adjustable shaking speed & time – Fine-tune powder application for different films and powders to achieve even coverage and sharp, vibrant prints.
  • Built-in dryer – Integrated drying speeds up film curing so you can increase throughput and keep jobs moving.
  • Intelligent sensor system – Maintains stable curing quality while reducing powder consumption for cleaner operation and consistent results.
  • Conveyor & suction film feed – Assisted feeding makes loading the initial film faster and easier, improving setup efficiency.
  • Clean powder filling box – Refill powder neatly and accurately, minimizing mess and helping ensure even application.
  • Powder drying function – Quickly dries powder-coated film for a smoother, more efficient workflow.
  • Large 45cm (18″) media width – A2-width capacity gives you flexibility for larger designs and gang sheets.
  • Easy maintenance – Simple, accessible cleaning points help keep the L16R in optimal condition and reduce unplanned downtime.

SPECIFICATION

Model Name Seismo L16R
Max Film Width 45cm (18″)
Control Panel Touch screen
Powder Volume 3 kg (6.6 lb)
Powder Recycling Every 4 to 5 hours manually (keep printing)
Power Requirements 3500W, 220V/16A
Machine Weight 170 kg (374.8 lb)
Packaging Weight 220 kg (485.0 lb)
Machine Dimensions 162cm × 87.2cm × 99.2cm (63.8″L × 34.3″W × 39.1″H)
Packaging Dimensions 142cm × 113cm × 113.6cm (55.9″L × 44.5″W × 44.7″H)
Warranty One year warranty

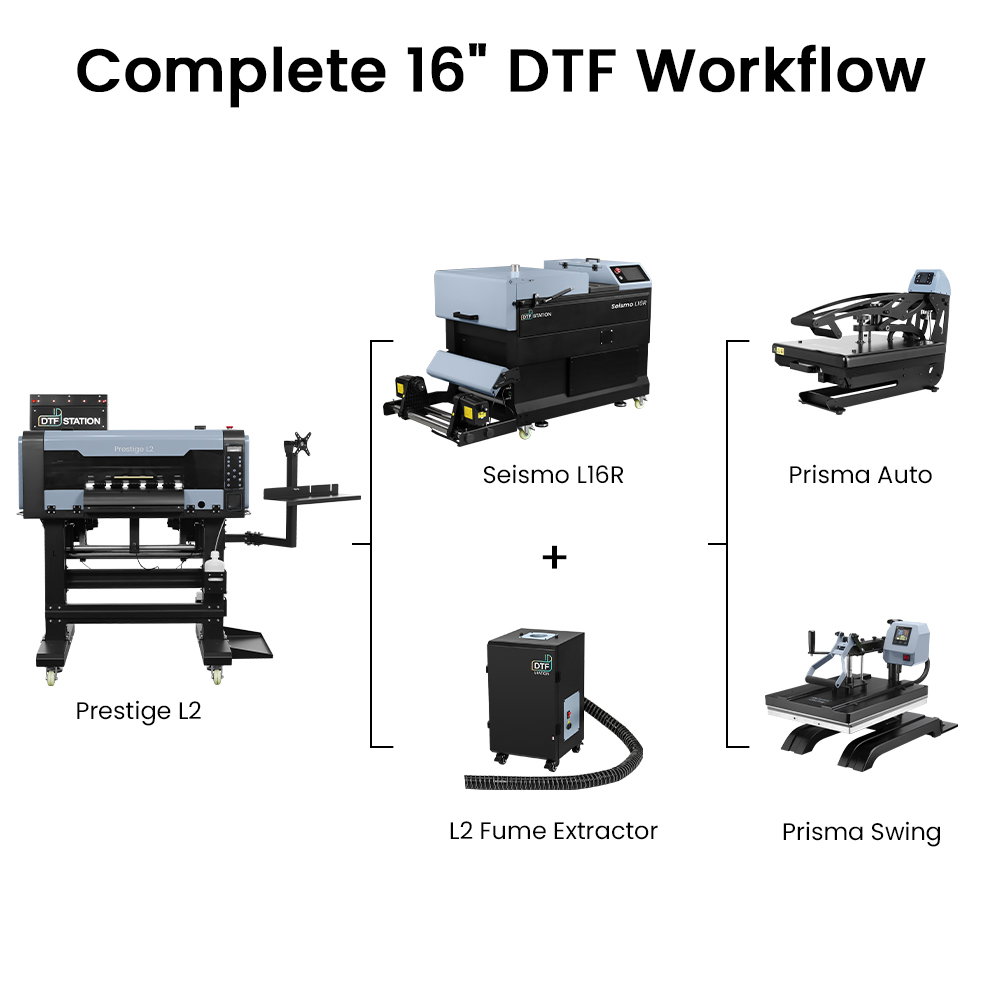

Compatible With DTF Station Printer: Prestige L2
Other DTF printers: With a printer width less than 45cm
Structure 1. Self-developed control system with DTF Station logo on it, while with sensor system to keep the shaker running at a lower power consumption but stable curving quality
2. Self-developed auto-recirculating system 3. Conveyor and suction system for easier initial film feeding
Reason to Develop This Model The Seismo L24R was developed to enable fewer people to run more machines. The goal was to create an auto-recirculation system that was not only easy to use but also stable and easy to maintain. This model is user-friendly and requires minimal after-sales service, making it an ideal choice for dealers.
Daily Maintenance The powder needs to be reloaded every 4 to 5 hours (based on 2 Epson I3200 heads keep printing). The machine is easy to clean before finishing daily work.
Warranty Terms 16 months from the date shown on the CE label.

Videos

Seismo L16R Promo VideoSeismo L16R Promo Video Seismo L16R Setup VideoSeismo L16R Setup Video
