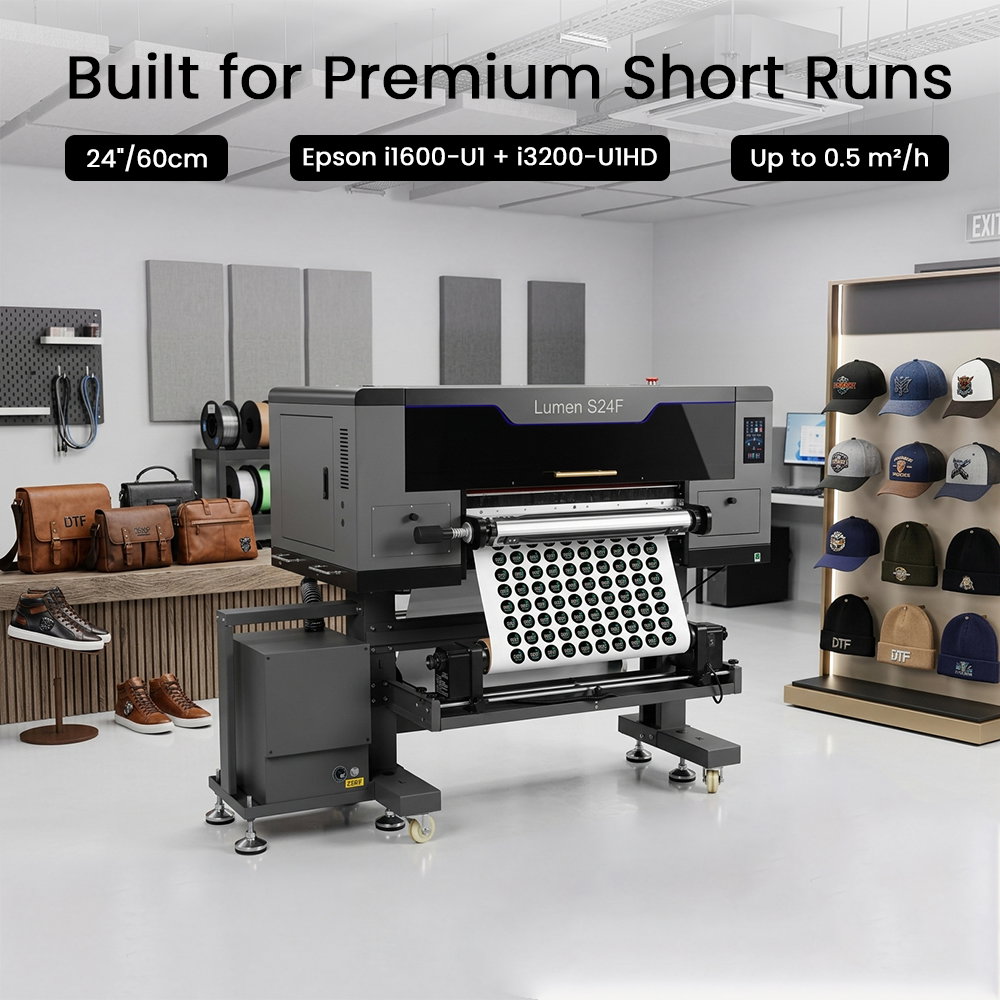

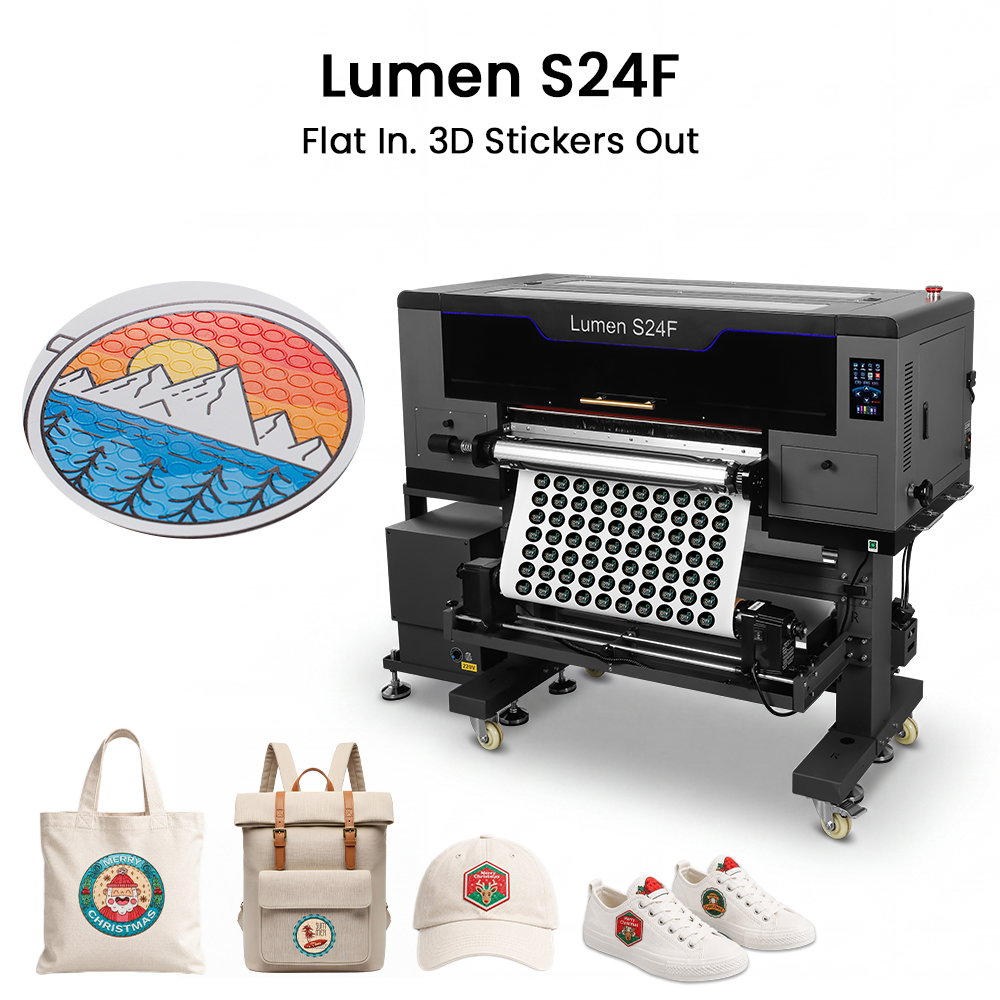

LUMEN S24F is a 24-inch / 60 cm 3D embossed UV DTF printer for shops creating raised branding on selected structured fabric accessories. Paired with Image Presto, the workflow lets operators select the raised area visually, apply relief treatments, inspect a 3D preview and export named channels to NeoStampa. The result is a more manageable path from ordinary customer artwork to dimensional output—supported by white ink circulation, auto-cleaning, alerts, sensors, static control and built-in purification.
Benefits List

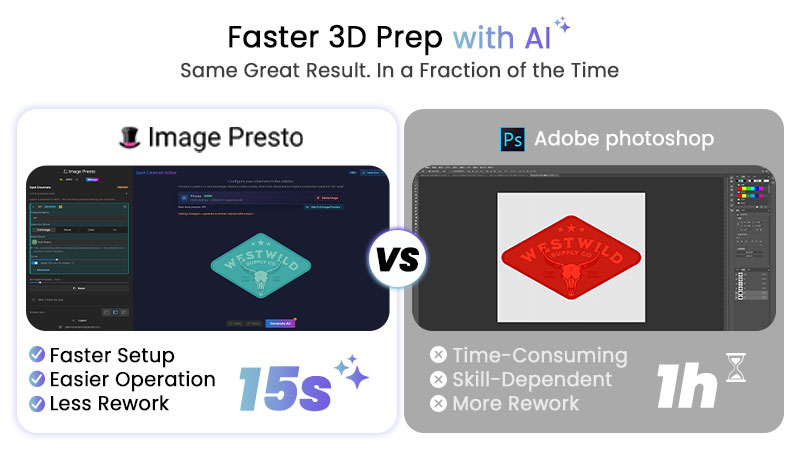

- Faster 3D layer preparation: Use AI-assisted masking and relief tools to create white, varnish and raised-effect layers with less manual setup.

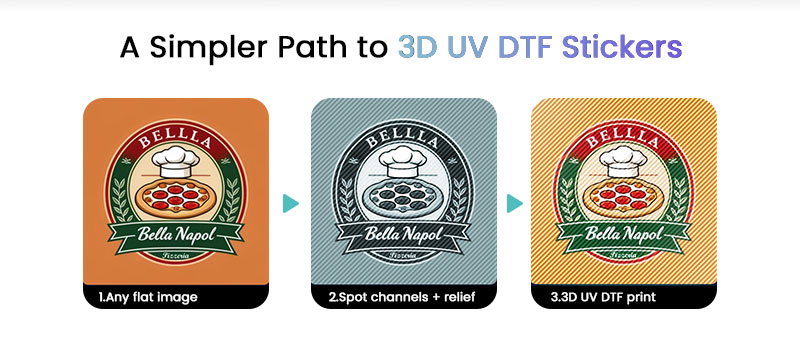

- Artwork to RIP, Faster: Select, raise, preview in 3D, then export directly to NeoStampa with fewer manual steps.

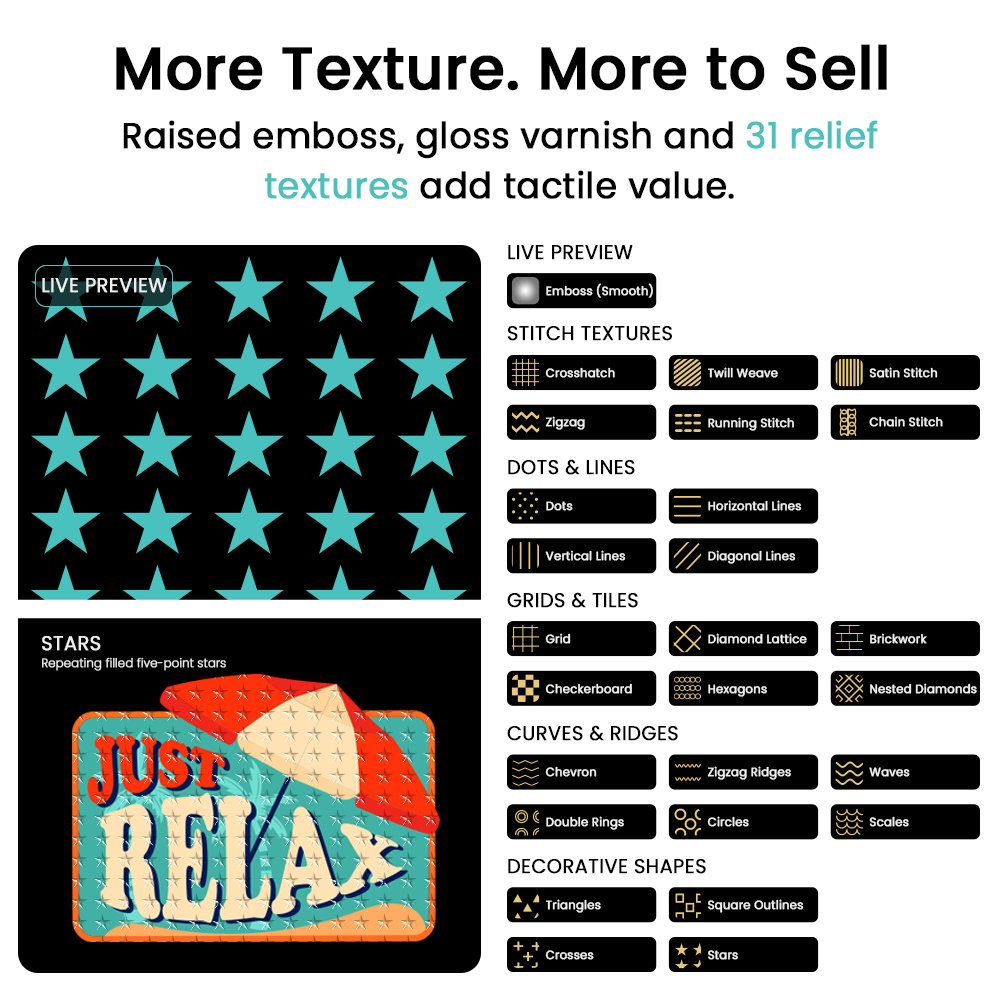

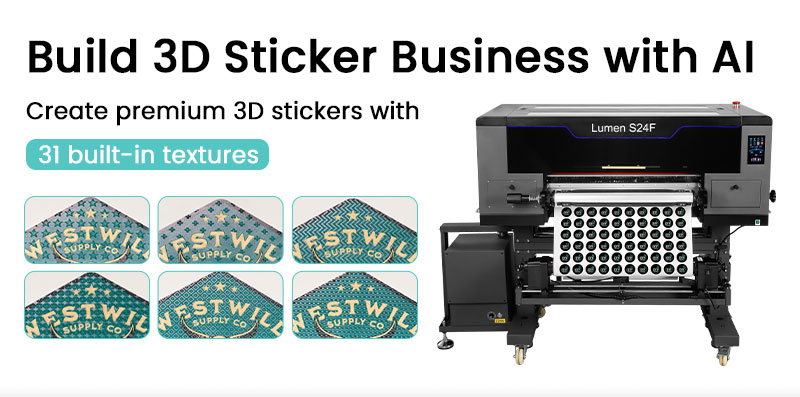

- More effects from one design: Apply up to 31 relief and stitch-style treatments to create different dimensional looks from the same artwork.

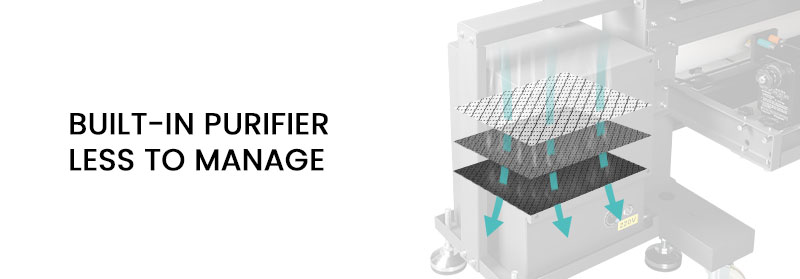

- Simpler fume management: Manage fumes more simply with a built-in purifier.

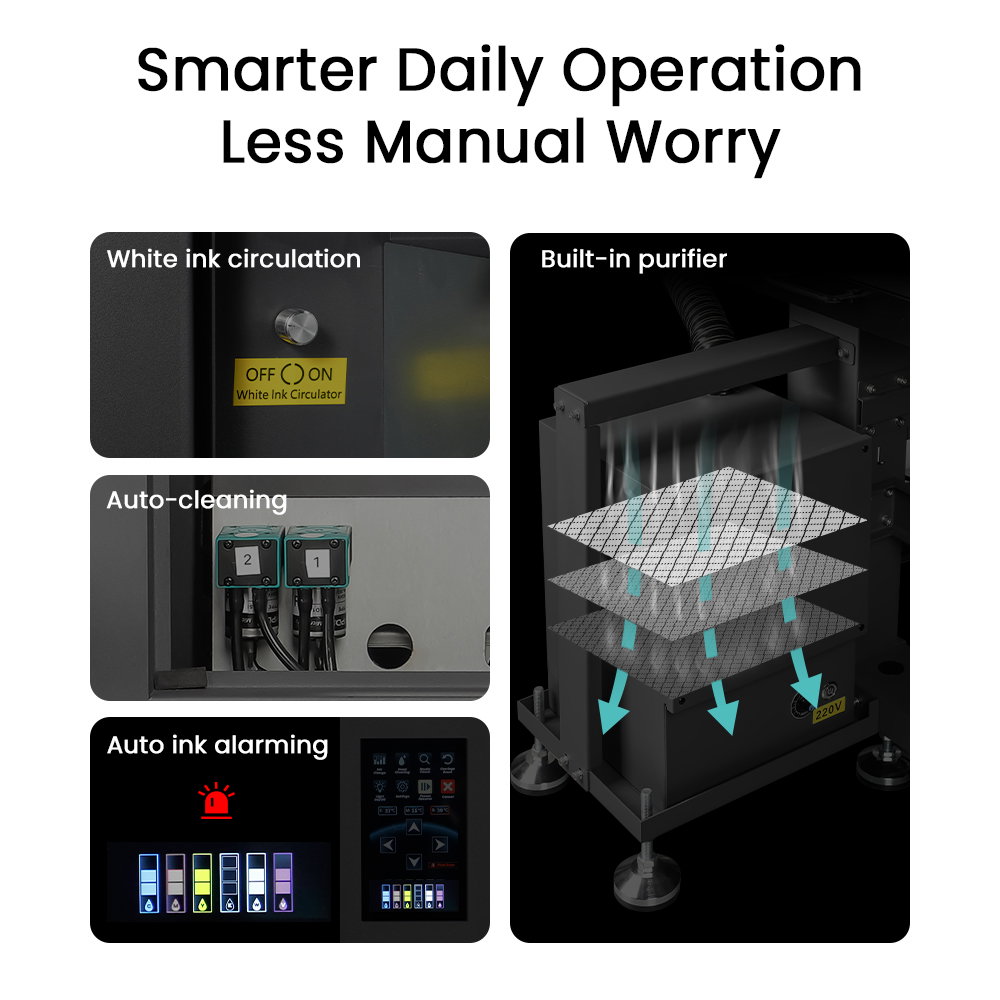

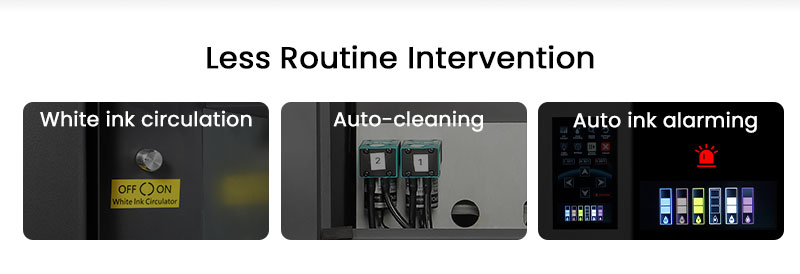

- Easier daily operation: Simplify daily operation with white ink circulation, auto-cleaning, ink alerts, static control and protection sensors
- Built for Structured Accessory Branding. Target suitable patches, tote bags, hats, shoes, can coolers and similar fabric products; not recommended for T-shirts.
Software / workflow
- Image Presto: visual selection, relief/stitch treatments, 3D preview and named spot-channel export.
- NeoStampa: RIP workflow.
- DTF Station Pilot/Hoson: machine setup/control workflow where applicable.
Specification
| Max Print Width |
24 in / 60 cm |
| Printheads |
1 × Epson i3200HD-U1 + 1 × Epson i1600HD-U1 |
| Ink Configuration |
CMYK + White + Varnish |
| Printing Speed |
Approx. 0.5 m²/h |
| Transfer Settings |
140–150°C (284–302°F), 10–15s, 50–65 psi (Medium Pressure), adjust slightly based on material. |
| Software |
Image Presto + NeoStampa RIP + DTF Station Pilot |
| White Ink Management |
White ink circulation |
| Printhead Cleaning |
Auto-cleaning |
| Alerts / Sensors |

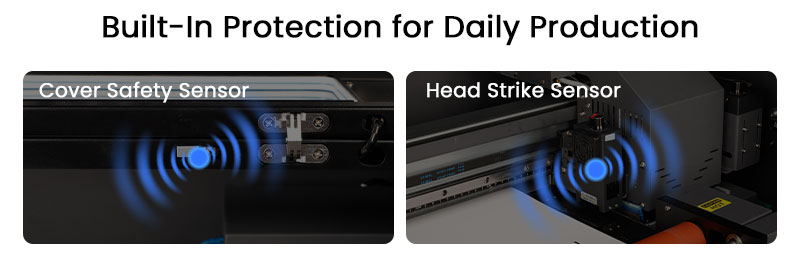

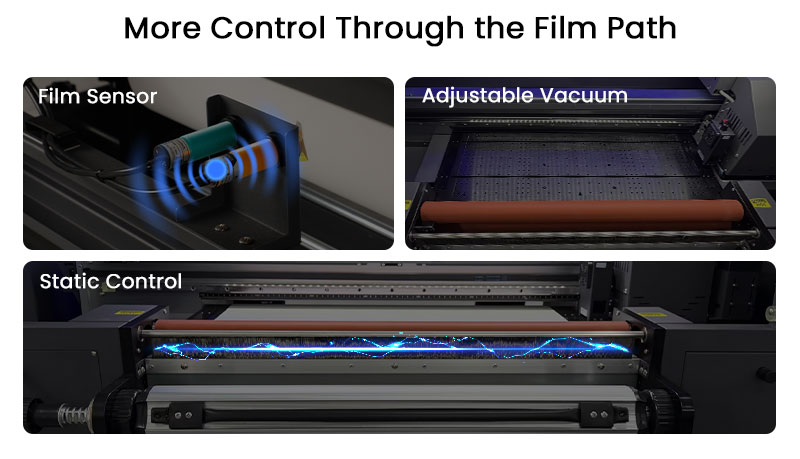

Ink alerts; head-strike sensor; cover safety sensor; film sensor |
| Static Control |
Included |
| Fume Management |
Built-in purifier |
| Power Consumption |
1,000 W total, including 200 W purifier system |
| Electrical |
110 V / 9.1 A or 220 V / 4.55 A |

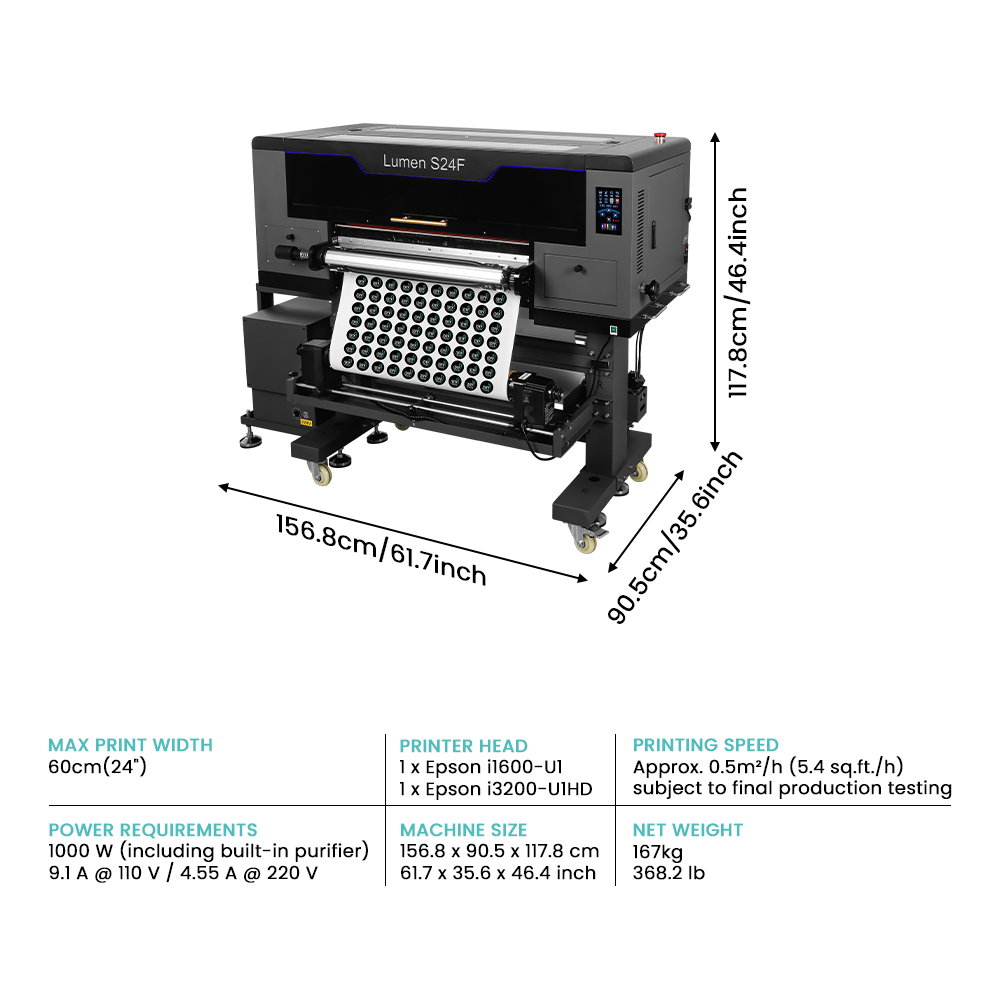

| Dimensions (W × D × H) |
1568 × 905 × 1178 mm (61.7 × 35.6 × 46.4 in) |
| Product Weight |
167 kg (368.2 lb) |

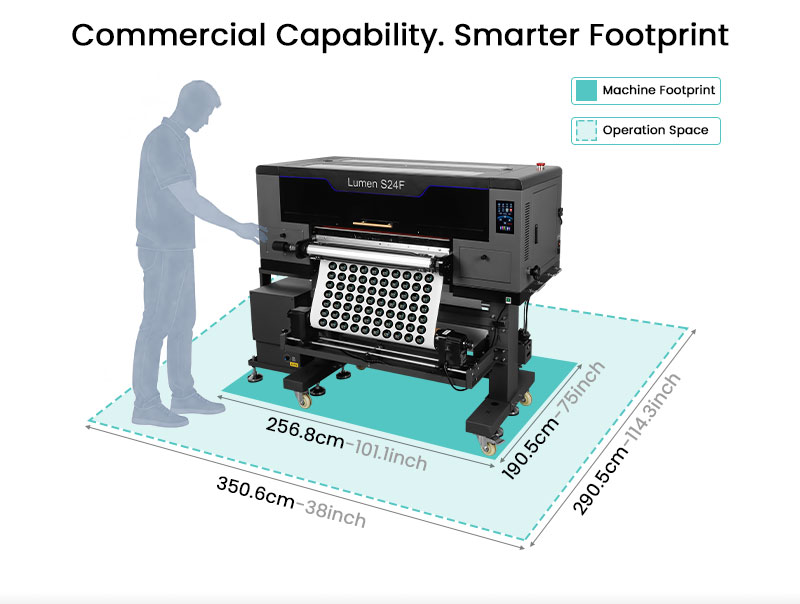

| Recommended Installation Space |
256.8 × 190.5 cm/101.1″ × 75.0″ |
| Recommended Operating Space |
350.6 × 290.5 cm/138.0″ × 114.4″ |
*Actual throughput varies with relief height, image coverage and print mode. Final production conditions should be confirmed for the intended job.
FAQs
1. Do I need Photoshop to prepare the spot channels?
Not for the Image Presto spot-channel prep path. Artwork can still originate in the design software you already use.
2. What dimensional effects can I create?
LUMEN supports raised and glossy varnish effects. Image Presto currently provides 31 relief and stitch-style treatments (Embroidery effects are still under testing ).
3. What products is LUMEN intended for?
Selected structured fabric products such as patches, tote bags, hats, shoes and similar accessories.
4. Can I use it for T-shirts?
It is not recommended for T-shirt production.
5. How fast does it print?
Approx. 0.5 m²/h based on our default settings. Actual throughput varies with relief height, coverage and print mode.
6. Does the built-in purifier mean I do not need ventilation?
Yes but room ventilation is still recommended.
7. What are the power requirements?
1,000 W total; 110 V / 9.1 A or 220 V / 4.55 A. This includes a 200 W purifier system.
