Mars 136 Sublimation Oven

Introducing the Mars 136 Sublimation Oven—a sleek, efficient, and easy-to-use solution for your sublimation needs. With a large 36L capacity, it can press up to 12 units of 11oz mugs at once, while six heating tubes and 360°C heat air circulation guarantee even, high-quality transfers. The user-friendly LED touch control, combined with included accessories like shrink wraps, heat-resistant tape, and gloves, makes it simple to operate. Perfect for small to medium-sized businesses looking to sublimate mugs, tumblers, bottles, and more.

SKU Mars 136 Categories , Tag

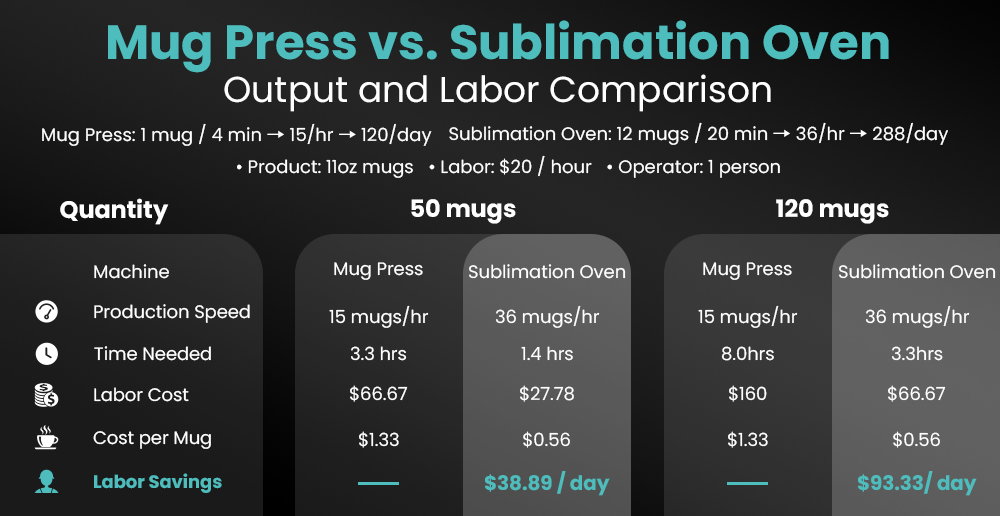

Sublimation Oven VS Mug Press: Output, Time, and Efficiency

Mug Press VS Sublimation Oven

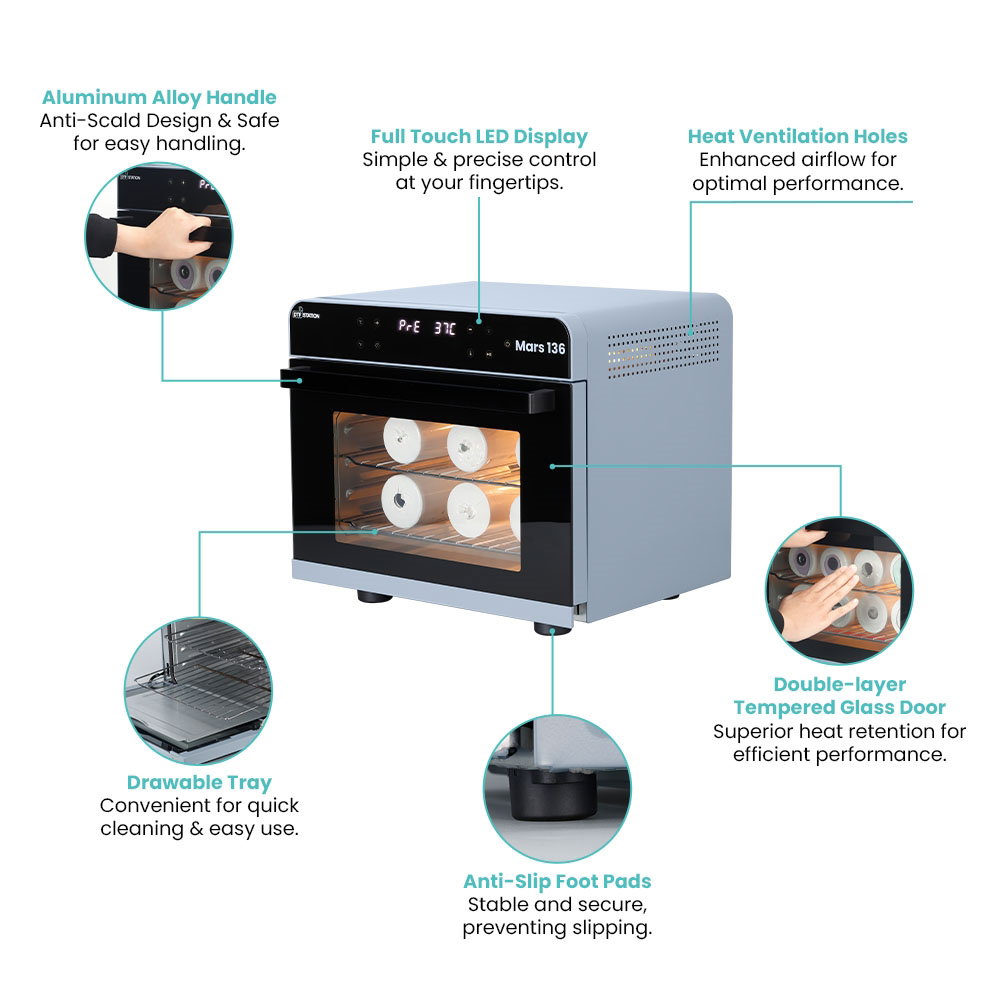

Features

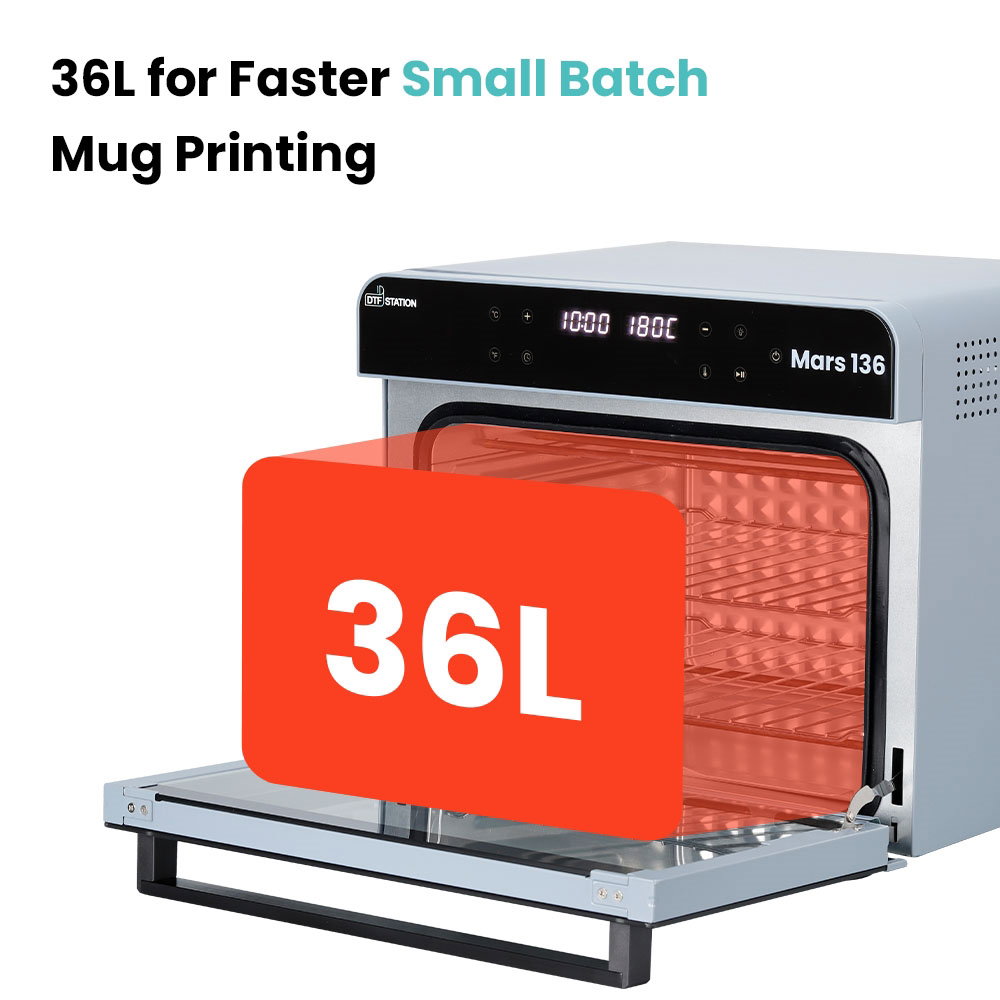

  • 36L Large Capacity – Can press up to 12 units of 11oz mugs simultaneously.
  • Six Heating Tubes – Four top and two bottom tubes for even heat distribution.
  • 360° Heat Air Circulation – Built-In top fan ensures optimal airflow and uniform heat for superior transfer results.
  • Temperature Precision – Built-in top fan and heating tubes ensure a temperature difference as low as 7°C.

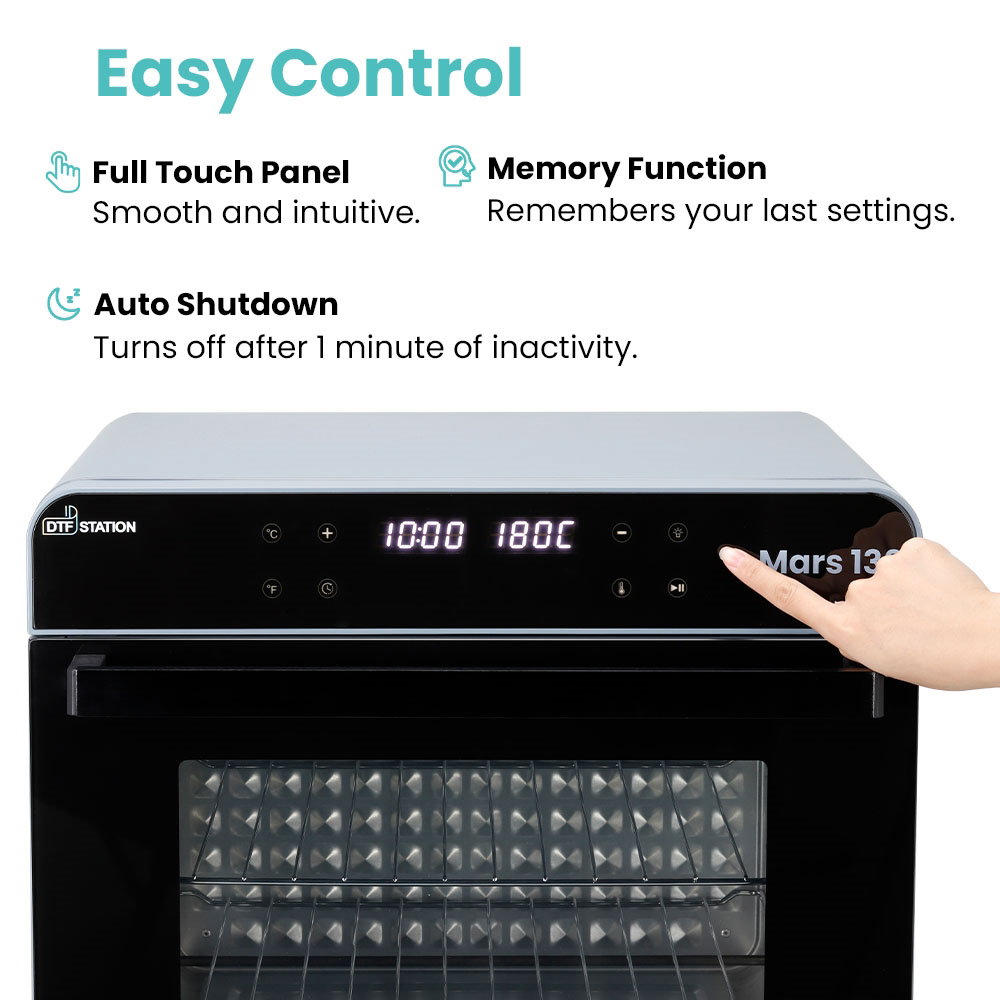

  • LED Touch Control – User-friendly display with intuitive operation.
  • Double-Insulated Glass Door – Prevents heat escape and enhances safety.
  • Light Bulb Inside – Provides lighting for better visibility inside the oven.
  • Compatible with Irregular Blanks – Works with mugs, tumblers, bottles, and more.

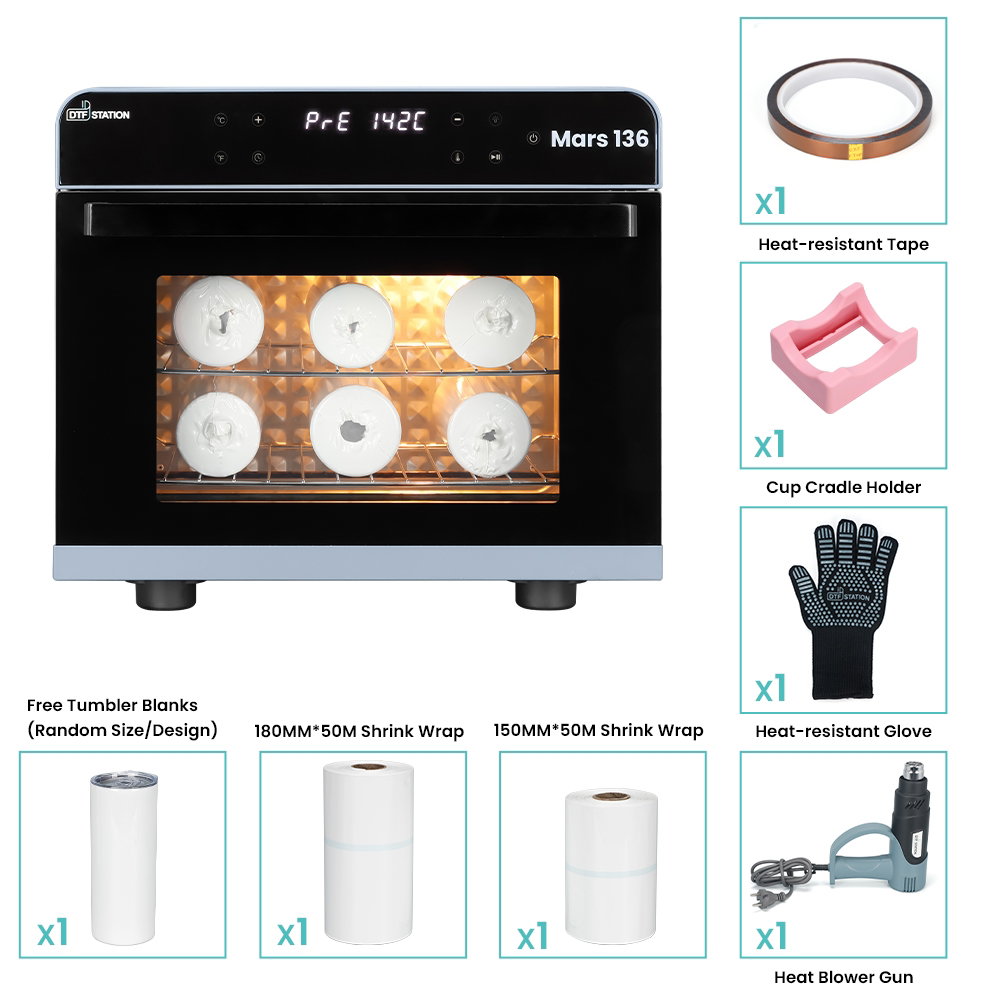

  • Included Accessories – Comes with shrink wraps, heat-resistant tape, gloves, and a free tumbler.
  • 16-Month Warranty – Warranty is valid for 16 months from the factory date. Plus lifetime support for peace of mind.

Benefits

  • Increased Productivity – Large capacity allows for multiple items to be pressed at once, saving time.
  • Superior Transfer Quality – Even heat distribution ensures vibrant, consistent results.
  • Easy Operation – The intuitive LED touch control makes setup and operation simple.
  • Versatility – Ideal for a wide range of products, including irregular shapes like bottles and tumblers.
  • Time and Cost Efficient – Efficient heat circulation speeds up the sublimation process, reducing operational costs.
  • Safety and Durability – Double-insulated glass door ensures no heat escape, enhancing safety and energy efficiency.
  • Perfect for Small to Medium-Sized Businesses – Ideal for custom product makers, startups, and home-based businesses.
  • Ready to Use – Includes all necessary accessories, so you can start sublimating immediately.
  • Space-Saving Design – Compact and sleek, fitting into smaller workspaces without sacrificing capacity or performance.
  • Reliable Support – Backed by a one-year warranty and lifetime customer support for peace of mind.

Specification

Specification Details
Voltage 110~120V (60Hz) / 220~240V (50Hz)
Current 16.36A (110V) / 8.18A (220V)
Operation Power 1800W
Standby Power Consumption <0.5W or <1.0W (with indicator light)
Temperature Range 38-210°C / 100-410°F
Time Range 1-60 minutes

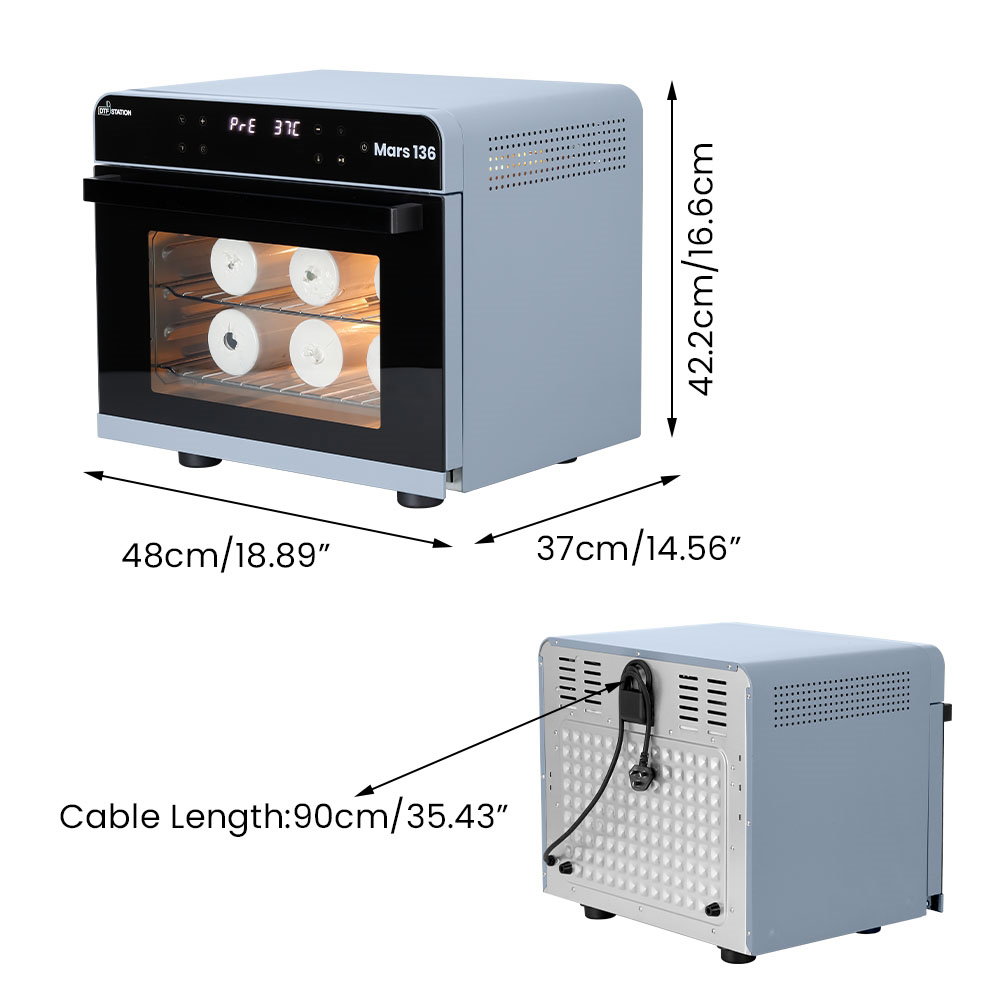

Machine Size (L x W x H) 486.5 mm x 430.3 mm x 423 mm (19.1” x 16.9” x 16.6”)
Machine Weight 11.77 kg (25.95 lbs)
Certificate CE
Operating Temperature -20°C to 80°C
Storage Temperature -25°C to 80°C
Capacity 36L
Max Printing Quantity Per Operation 6 pcs of 11 oz mug (12 min) / 6 pcs of 20 oz tumbler (12 min)
Warranty Terms 16 months from the date shown on the CE label.

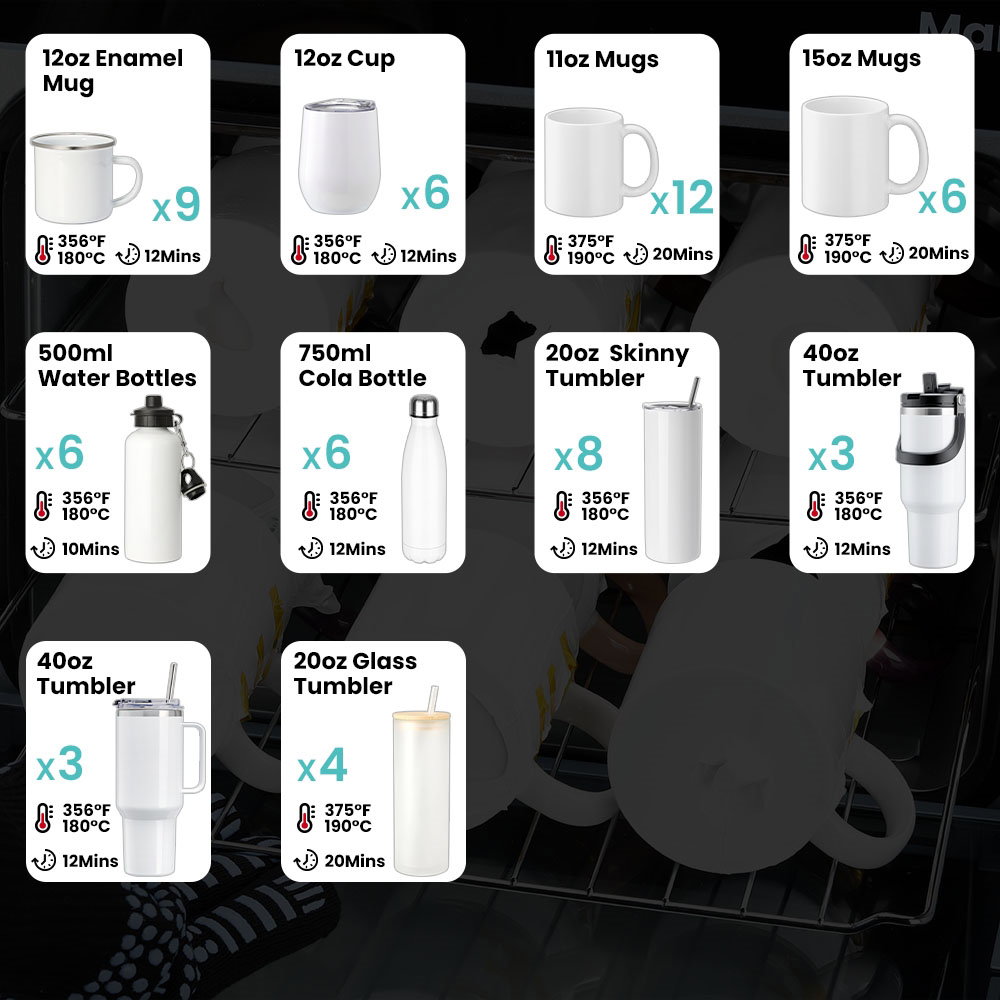

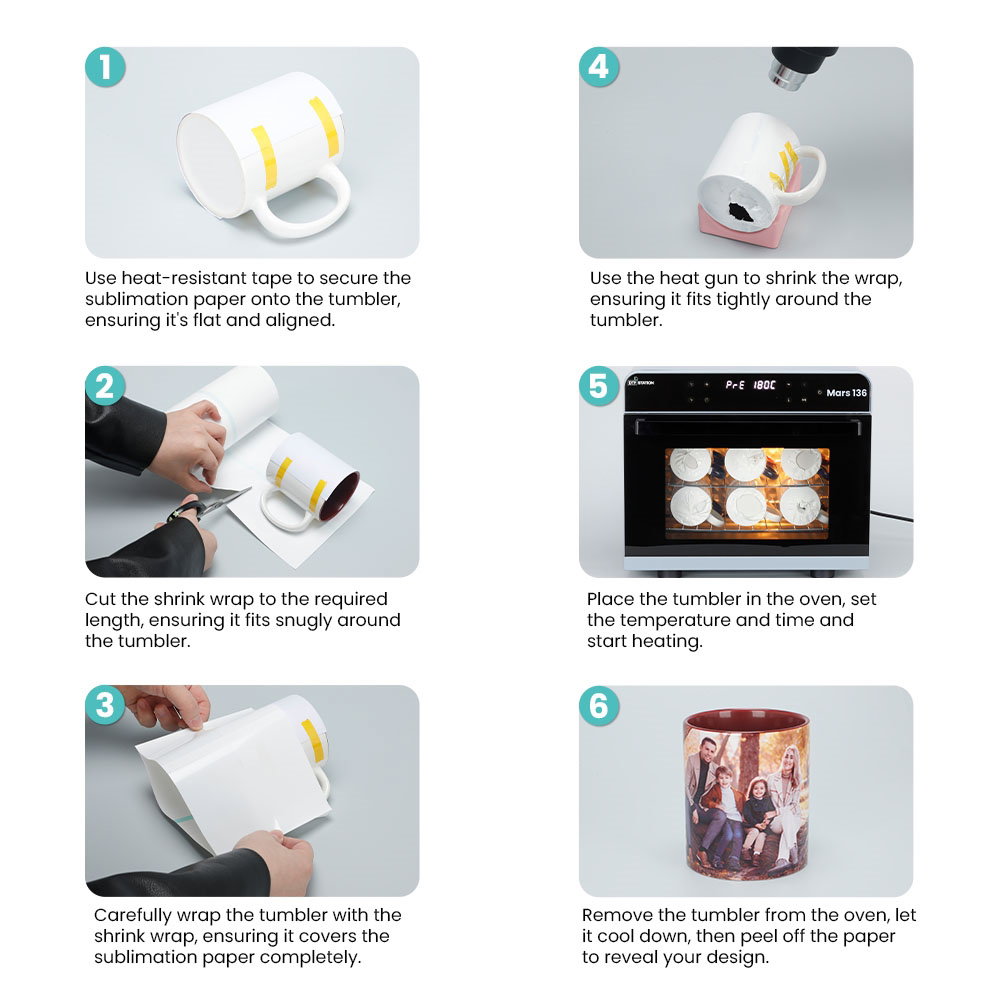

Quick Guide

Size & Design Qty/Run Temperature Time Shrink Wraps Length Placement Guide
Straight 20oz Bottle 8 356°F / 180°C 12mins 25cm 4 Items Per Layer
2 Layers Max
20oz Glass Tumbler 4 375°F / 190°C 20mins 25cm 4 Items For One Layer
11oz Mugs 12 375°F / 190°C 20mins 14cm (Opening Required for Handle) 6 Items Per Layer
2 Layers Max
15oz Mugs 6 375°F / 190°C 20mins 16cm (Opening Required for Handle) 6 Items For One Layer
40oz Tumbler with Handle 3 356°F / 180°C 12mins Top – 18cm
Bottom – 10cm
3 Items For One Layer
40oz Travel Mug with Metal Handle 3 356°F / 180°C 12mins Top – 18cm (Opening Required for Handle)
Bottom – 10cm
3 Items For One Layer
500ml Water Bottles 6 356°F / 180°C 10mins 18cm 3 Items Per Layer
2 Layers Max
12oz Enamel Mug 9 356°F / 180°C 12mins 12cm 9 Items For One Layer
12oz Stemless Cup 6 356°F / 180°C 12mins 15cm 6 Items For One Layer
750ml Cola Bottle 6 356°F / 180°C 12mins 24cm 3 Items Per Layer
2 Layers Max
