Prisma Auto Heat Press 15x15 & 16X20 Inch

Automatic open and clamshell design, redefine efficiency and versatility.Elevate your printing game with Prisma Auto, where precision meets convenience.

Overview

Specification

Downloads

Prisma Auto Heat Press 15x15 & 16x20 Inch

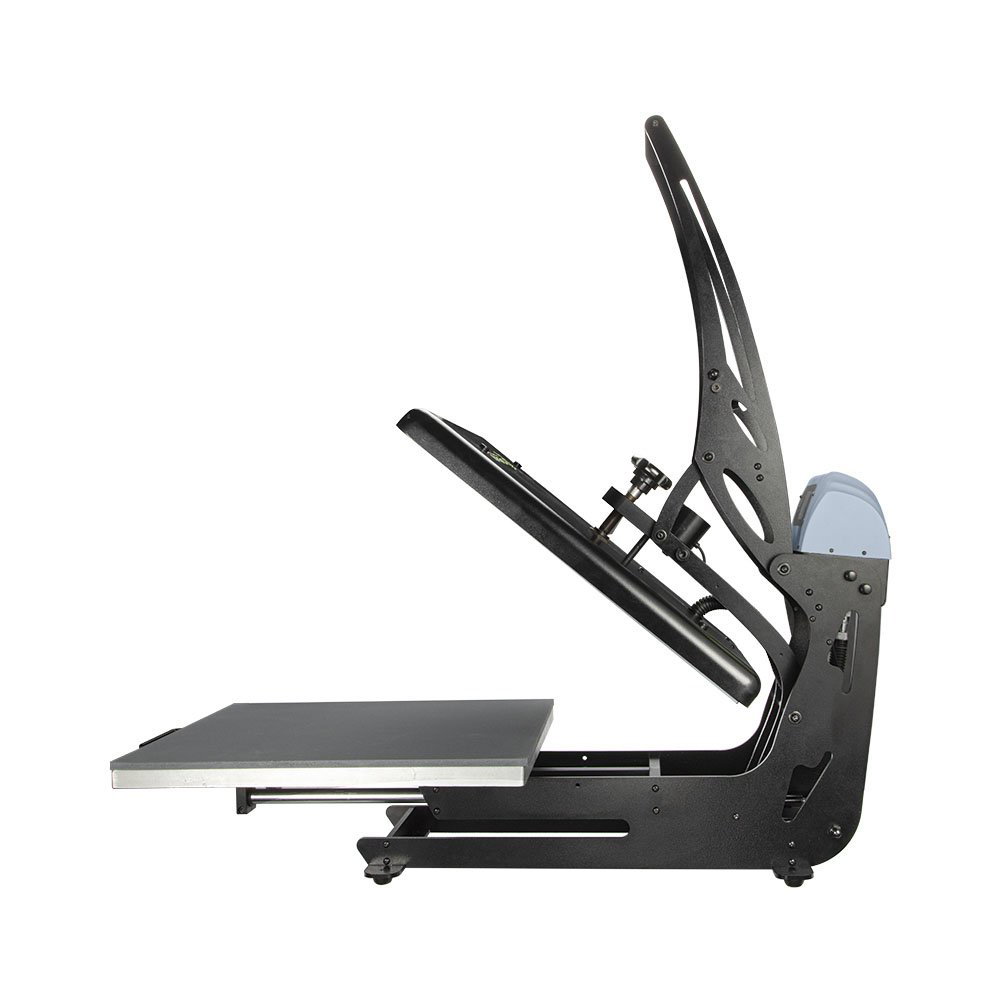

Prisma Auto Heat Press is with the platen size as 40*50cm(16*20") which is the most popular size. With the Auto-open with slider, pressure sensor, Ramlock & Ramspin systems, this heat press will be an added asset to your operation. A heat press can meet all the expected jobs from users is what our Prisma Auto heat press is!

Key Features

RAMSPIN System: With the self-developed "RAMSPIN" quick-change system, users can switch between auto-open and manual open control options quickly and easily.
RAMLOCK Quick Change System: With this patent system, customer can change multiple lower platens with different sizes easily.
Dressable Lower Platen: The large space base allows users to dress garments over the lower platen without stretching them out. Simply load the shirt onto the platen and feed the bottom of the garment through the clearance underneath the lower platen.

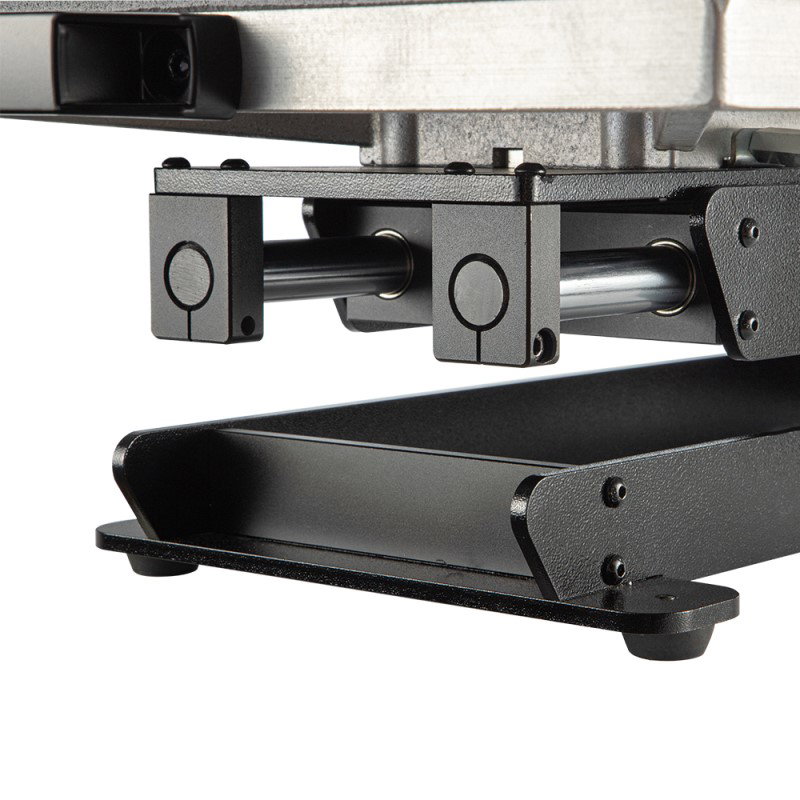

Slider-out Lower Platen: With the slide-out lower platen, users can place or dress garments freely without worrying about burning their hands on the upper platen during heating.
Interchangeable Control Box: With the quality aviation connector, the control box can be taken off and on easily. This helps with the machine maintenance.
Heat Platen: Superior even heating

Benefit

One press to do all the jobs that you expected!

Compatiable With

All the Prestige Series Printer ,shaker and oven.

Model Name	Prisma Auto
Power Requirements	1800W, 120V,16.4A; 240V, 8.2A
Heater Size	15"x15"(381x381mm) / 16"x20"(406x508mm)
Temperature Range	Max.221℃/430°F
Heating Up Time	180℃/20 minutes
Auto-open/Manual	Optional
Slide-out Lower Platen	Yes
Way to Change Lower platen	“Ramlock” quick change system

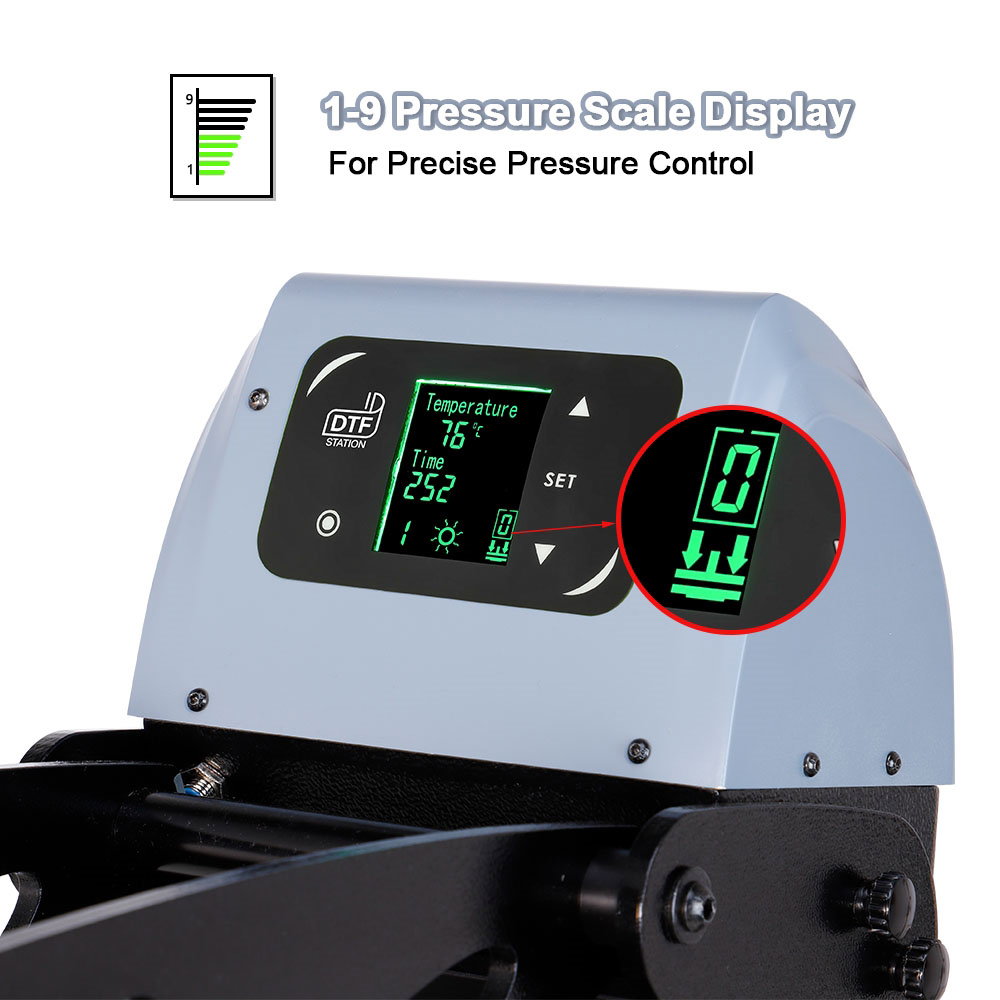

Pressure Display	YES
Product Weight	45kg / 46kg
Packaging Weight	46.5kg / 54kg
Machine Dimensions	630x410x860mm / 750x430x1000mm
Packaging Dimensions	715x500x470mm / 825x495x505mm
Warranty	One year warranty on the control board, Two years warranty on the entire machine, 10 years warranty on the heat platen
Certificate:	CE,FCC
Suitable Users	All DTF sheet printing users

Oops! Looks like we haven't filled this tab with anything yet - it's as empty as a blank t-shirt waiting to be printed! But don't worry, we're working on it and will soon be adding some awesome files that will make your DTF printing experience even better. Stay tuned and keep checking back!

Videos To Maximize Prisma Auto's Potential

Playlist

2 Videos

0:16

What Can You Print With Prisma Auto Heat Press?

FAQs

What‘s the operation mode of this machine?

Prisma Auto supports two operation modes, auto release and manual.

Can I change the lower lower platen into other sizes?

Yes, Prisma Auto has our patented feature: Ramlock system. The lower platen on Prisma Auto can be changed.

What's the open size of this machine?

76.2*43.18*99.06cm

Can I operate this machine at home?

Yes, the power requirement for Prisma Auto is about 1500W.

Pick the Right Printers for Your Business

Model	Prisma Swing	Prisma Auto	Prisma Palette	Prisma Hobby	Prisma Duet
Price Range
Recommended Use	Premium Production Use	Premium Production Use	Advanced Hobby & Home Use	Hobby & Home Use	Advanced Hobby & Home Use
Durability
User Friendly
Available Sizes	16″x20″	16″x20″, 15″X15″	13.8″x16.5″	8.3″x11.8″	Rechangeable platen with different sizes
Auto-open/Manual	Manual	Optional	Optional	Manual	Manual
Format	Swing Away	Clamshell; Manual&Auto-Open Interchangeable; Slider-Out	Clamshell	Clamshell	Clamshell
Ramlock System	YES	YES	YES	NO	Yes
Pressure Read Out	NO	YES	NO	NO	N/A
Nonstick Coating	Sprayed On	Sprayed On	Sprayed On	Sprayed On	Sprayed On
Temperature& Time Gauge	Digital Automatic Start	Digital Automatic Start	Digital Automatic Start	Digital Automatic Start	Digital Automatic Start
Weight(kg)	16″x20″ 42KG	15″x15″-49KG; 16″x20″-54KG	30KG	15KG
Suitable for	Dye-sub Laser Transfer Vinyl Transfer Screen Printed Transfer	Dye-sub Laser Transfer Vinyl Transfer Screen Printed Transfer	Dye-sub Vinyl Transfer Screen Printed Transfer	Dye-sub Vinyl Transfer Screen Printed Transfer	Cap & LOGO Decorators T-shirts, Jackets, legs,etc All types of LOGO decoration.
Warranty	10 years on heat platen 1 year on parts	10 years on heat platen 1 year on parts	5 years on heat platen 1 year on parts	3 years on heat platen 1 year on parts	1 year on whole machine
