36-Inch DTF Powder Shaker: Is Your Curing System Keeping Up?

A faster DTF printer doesn’t automatically mean more finished transfers. If your powder shaker and dryer can’t keep pace—or maintain the curing conditions your production requires—the finishing stage can become your next bottleneck.

When choosing a 36-inch DTF powder shaker and dryer, three things matter more than the machine’s width alone: finishing capacity, curing control, and daily operating requirements.

Here’s what to check—and how the MIRO 36 and MIRO 36 Pro address different production needs.

1. Match Finishing Capacity to Your Printer’s Actual Speed

A 36-inch printer and a 36-inch powder shaker might match in width, but that doesn’t mean they’re matched for production.

Start with your printer’s actual output in the print mode you use—not just its maximum advertised speed.

For example, DTF Station offers two 36-inch finishing options:

Model	Supported printer output	Production fit
MIRO 36	Below 9 m²/h	Compatible production lines where the original system meets curing and operating needs
MIRO 36 Pro	Up to 22 m²/h*	Higher-output lines and shops seeking more curing control and operational flexibility

MIRO 36 Pro’s maximum supported output depends on printer configuration, media, powder, settings, and operating conditions.

The important distinction isn’t simply faster versus slower.

If your current finishing system already handles your production reliably, additional capacity may not be necessary. But if you’re investing in a faster printer, running longer jobs, or planning more output, your curing equipment deserves another look.

2. More Speed Means Less Time to Cure

Here’s a detail that matters in real DTF production: as film moves faster through a fixed-length curing path, it spends less time under heat.

That means increasing conveyor speed isn’t just a question of turning up the temperature. You need the right heating coverage and control to achieve the required adhesive-powder cure without overheating the film.

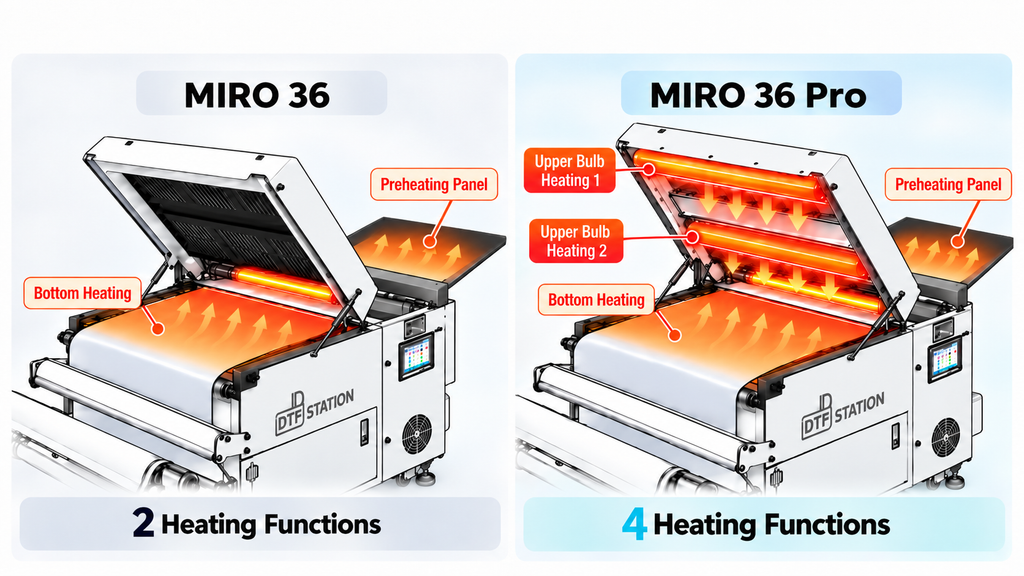

36 Inch DTF Powder Shaker Heating Section Comparison

Both MIRO 36 and MIRO 36 Pro use front preheating and bottom heating.

MIRO 36 Pro adds two upper heating sections and four independently controlled temperature zones.

What does that change?

More heating coverage: Preheat, bottom heat, and upper heating work across the curing path.
More adjustment control: Four independent temperature sensing and control points allow operators to adjust different heating sections.
More production headroom: The system supports compatible printer output up to 22 m²/h, subject to operating conditions.

The goal isn’t simply more heat. It’s better control over the curing process as production requirements change.

3. Don’t Overlook Fume and Oil Management

Curing performance is only part of a reliable DTF workflow.

Hot fumes and oil mist can contact cooler machine surfaces, creating condensation and buildup that require cleaning. Where the extraction system pulls those fumes matters.

MIRO 36 Pro features an upgraded downward extraction design.

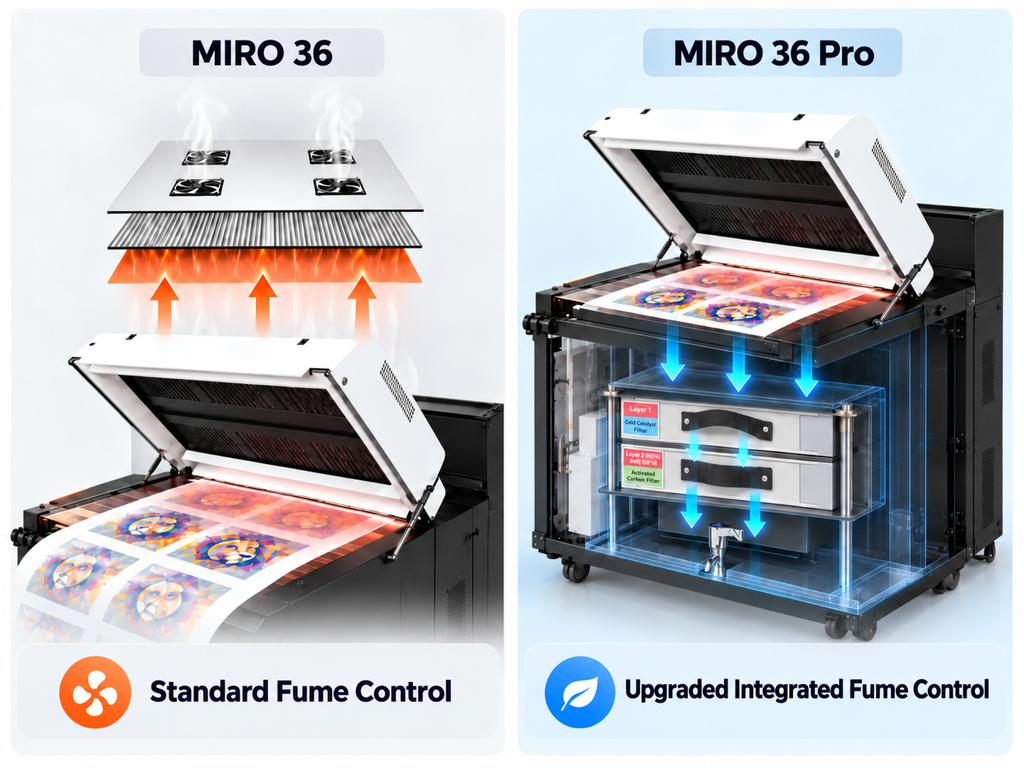

36-Inch DTF Powder Shaker with Upgraded Fume & Oil Control System

Instead of directing hot fumes toward the upper cover, the system draws fumes and oil mist downward. This helps reduce contact with the upper cover, where condensation may form.

Operators also gain adjustable suction strength to accommodate production requirements.

For factories with an existing exhaust system, an additional connection allows integration with the facility’s extraction setup.

These changes are particularly relevant for print shops concerned about oil accumulation, cleaning access, and maintaining a more manageable daily workflow.

Fume management does not eliminate the need to assess appropriate ventilation and local workplace requirements.

4. Check the Installation Requirements Before Ordering

Even the right shaker won’t be the right purchase if it cannot be installed and supported properly.

MIRO 36 Pro has the following requirements:

Specification	MIRO 36 Pro
Maximum film width	36″ / 90 cm
Rated power	3.1 kW
Power configurations	110 V / 28 A or 220 V / 14 A
Machine dimensions	194 × 110 × 82.3 cm
Net weight	226.5 kg
Fume management	Integrated extraction + optional external connection

Its detachable construction is designed to help with standard-door access. Confirm doorway clearances, installation procedure, electrical circuit requirements, and ventilation arrangements with your equipment provider before delivery.

Which MIRO 36-Inch Powder Shaker Is Right for You?

The two models serve different requirements.

Consider MIRO 36 if:

Your compatible printer operates below 9 m²/h.
The original heating and purification setup meets your needs.
Your current production plans don’t require additional finishing capacity.

Consider MIRO 36 Pro if:

You’re pairing with a faster compatible printer, such as Prestige X6.
You want greater control over curing conditions.
Fume and oil management or maintenance access is an important consideration.
You’re planning additional production capacity while staying with 36-inch finishing.

MIRO 36 continues to serve the workflows it was designed for. MIRO 36 Pro extends the choice for customers whose operating requirements go further.

Quick Questions Before Buying

Can MIRO 36 Pro work with the Epson SureColor G6070?

Yes. Both MIRO 36 and MIRO 36 Pro can support compatible G6070 workflows. The choice depends on required capacity, curing control, fume management, and operating preferences.

Is MIRO 36 Pro compatible with Prestige X6?

Yes, for the approved configuration at 720 × 1200 DPI (Normal Strong A) or above. Confirm the intended print mode and line configuration before purchasing.

Does a 22 m²/h rating guarantee that output on every job?

No. Actual supported output depends on the printer, film, powder, curing settings, and operating conditions. A real production demonstration with your intended configuration is the best way to assess workflow fit.
